The XMLConnector component (Flash Professional only)

The XMLConnector component provides your application with access to any external data source that returns or receives XML through HTTP. The easiest way to connect with an external XML data source and use the parameters and results of that data source for your application is to specify a schema, the structure of the XML document that identifies the data elements in the document to which you can bind. You can manually create the schema through the Component Inspector panel, or you can use the authoring environment to create one automatically.

For more information on the XMLConnector component, including its properties, methods, and events, see XMLConnector component.

Note: The authoring environment accepts a copy of the external XML document you are connecting to as a model for the schema. If you are familiar with XML scripting, you can create a sample XML file that can be used to generate a schema.

XMLConnector component parameters

direction A string that defines what type of operation to perform via HTTP when trigger() is called: send, sendAndLoad, or load correspond to receive, receive/send, and send, respectively.

ignoreWhite A Boolean value; the default setting is false. When this parameter is set to true, the text nodes that contain only white space are discarded during the parsing process. Text nodes with leading or trailing white space are unaffected.

multipleSimultaneousAllowed A Boolean value; when this parameter is set to true, it allows a trigger() operation to initiate when another trigger() operation is already in progress. Multiple simultaneous trigger() operations may not be completed in the same order they were called. Also, Flash Player may place limits on the number of simultaneous network operations. This limit varies by version and platform. When the parameter is set to false, a trigger() operation cannot initiate if another one is in progress.

suppressInvalidCall A Boolean value; when this parameter is set to true, it suppresses the trigger() operation if the data parameters are invalid. When it is set to false, the trigger() operation executes and uses invalid data if necessary.

Common workflow for the XMLConnector component

To use an XMLConnector component:

Add an instance of the XMLConnector component to your application and give it an instance name.
Use the Parameters tab of the Component Inspector panel to enter the URL for the external XML data source that you want to access.
Use the Schema tab of the Component Inspector panel to specify a schema for the XML document.
Note: You can use the Import Sample Schema button to automate this process.
Use the Bindings tab of the Component Inspector panel to bind data elements (params and results) from the XML document to properties of the visual components in your application. For example, you can connect to an XML document that provides weather data and bind the Location and Temperature data elements to label components in your application. The name and temperature of a specified city appears in the application at runtime.
Add a trigger to initiate the data binding operation: use the Trigger Data Source behavior attached to a button, or add ActionScript.

Importing schemas for XML data sources

The key to using XML documents and data binding is to import a schema (the data structure that appears in the Schema panel) that you can then bind to.

To import a sample schema:

Drag an XMLConnector component to the Stage.
Click the schema tab of the Component Inspector panel and select Results.
Click the Import Sample Schema button in the upper right corner of the Schema tab to import a schema.
Select the file that you want to use as an example, and click Open.
The schema appears in the Schema tab

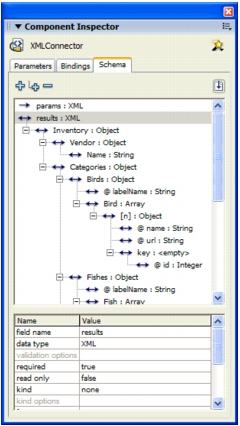

For example, the schema for a file named Animals.xml looks like the following:

This is a schematic representation of the structure of the XML file. It says that the results property of the XMLConnector component is an XML object. The root element of that object is called Inventory, which contains the elements Vendor, categories, and so on. The Vendor element contains a single element called Name, which is a string. The categories field contains an element called Birds, which contains the attribute labelname. The Birds element also contains an array of objects called Bird. Each of these objects has two attributes: name and url. It also contains a single element named key, which contains the attribute id.

The String and Integer fields can be bound to a variety of UI components. The Array field Bird can be bound to List, DataGrid, or ComboBox components, or you can directly bind UI components to fields within the array. A typical workflow for an application that works with data would include binding an array from the XMLConnector component to the DataSet component's dataProvider property. In this scenario, the data set could be used to manage the data. The fields within the data set could then be mapped to any of the UI components using data binding.

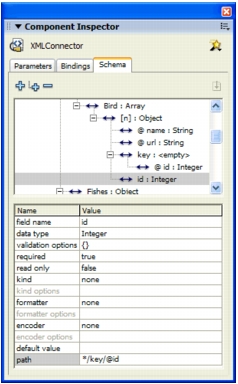

Virtual XML schemas

If the structure of the XML data provided to your application is not of the desired form, a virtual schema allows you to change how the underlying data structure is interpreted when bindings are executed. The new structure is derived using XPath statements. See Supported XPath expressions.

For example, the schema for animals.xml file described previously (see Importing schemas for XML data sources) defines an array of objects called Bird. Each object contains two fields (name and url). They also contain a subelement with one field called id. If you bind the Bird array to a DataSet component (using the dataProvider property) with three fields—name, url, and id—each item that is returned from the array is constructed with this algorithm:
